DIN2527 法兰盖(DIN)
| 尺寸 | DN10-DN1000 |
| 压力 | PN6 PN10 PN16 PN25 PN40 PN64 PN100 |
| 材质 | 咨询销售部工程师！ |
| 工艺 | 锻造 |
| 标准 | DIN2527 |
158 2163 0513
产品介绍

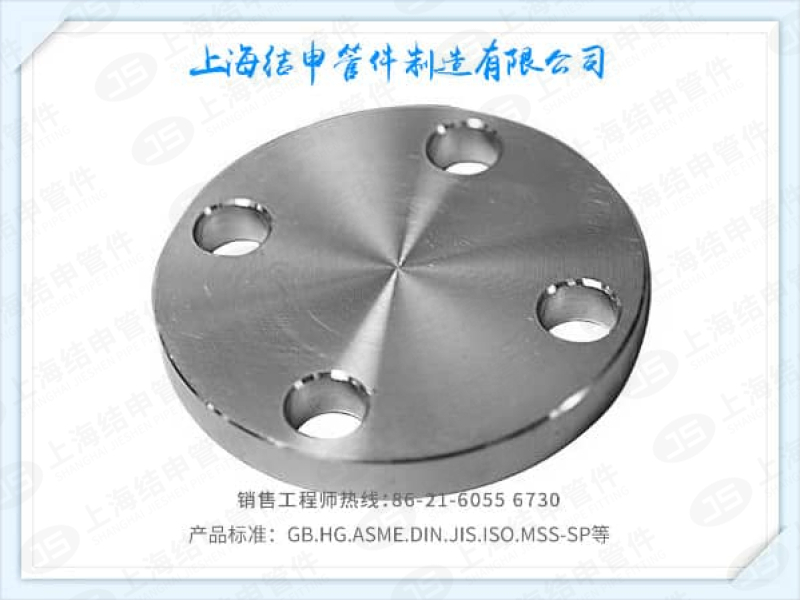

DIN2527 PN10 Blind Flange
Specification of DIN2527 PN10 Blind Flange
| Nominal Pipe Size | Flange Dimension | Screw Parameter | Approx. Flange Weight | |||
| Flanges Dia | Thk of Flange | Dia of Bolt Circle | No. of holes | Dia of Bolt Holes | ||

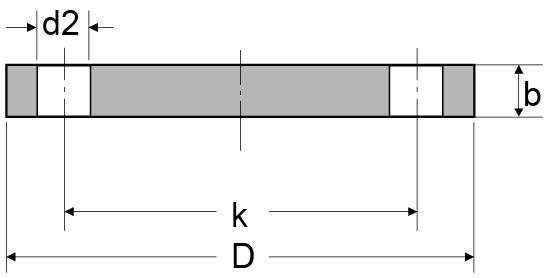

| DIN | D | b | k | X | d2 | KG/PCS |
| 10 | 90 | 14 | 60 | 4 | 14 | 0.63 |
| 15 | 95 | 14 | 65 | 4 | 14 | 0.71 |
| 20 | 105 | 16 | 75 | 4 | 14 | 1.01 |
| 25 | 115 | 16 | 85 | 4 | 14 | 1.23 |
| 32 | 140 | 16 | 100 | 4 | 18 | 1.81 |
| 40 | 150 | 16 | 110 | 4 | 18 | 2.09 |
| 50 | 165 | 18 | 125 | 4 | 18 | 2.88 |
| 65 | 185 | 18 | 145 | 4 | 18 | 3.65 |
| 80 | 200 | 20 | 160 | 4 | 18 | 4.61 |
| 100 | 220 | 20 | 180 | 4 | 18 | 5.65 |
| 125 | 250 | 22 | 210 | 8 | 18 | 8.13 |
| 150 | 285 | 22 | 240 | 8 | 22 | 10.49 |
| 175 | 315 | 24 | 270 | 8 | 22 | 14.11 |
| 200 | 340 | 24 | 295 | 8 | 22 | 16.53 |
| 250 | 395 | 26 | 350 | 12 | 22 | 24.08 |
| 300 | 445 | 26 | 400 | 12 | 22 | 30.81 |
| 350 | 505 | 26 | 460 | 12 | 22 | 39.64 |
| 400 | 565 | 26 | 515 | 16 | 26 | 49.44 |
| 500 | 670 | 28 | 620 | 20 | 26 | 75.16 |
| 600 | 780 | 30 | 725 | 20 | 30 | 109.2 |
| 700 | 895 | 32 | 840 | 24 | 30 | 153.77 |
| 800 | 1015 | 36 | 950 | 24 | 33 | 222.86 |
| 900 | 1115 | 40 | 1050 | 24 | 33 | 299.08 |
| 1000 | 1230 | 46 | 1160 | 28 | 36 | 418.78 |
